OpenSCAD Basics: From a Simple Brick to a Rounded Tray

July 11, 2026 by Leszek

OpenSCAD is a language for describing solid 3D geometry with code. Instead of clicking and dragging, you write statements that create shapes, move them, and combine them. The result is precise, parametric, and easy to modify later.

This article walks through the first three fundamental ideas using three practical examples:

A solid rectangular brick
A simple hollow cup
A rounded tray with soft corners

Under each scad code example you have a link that will open model it in scadman, to see the result immediately. No installation is required.

1. The Coordinate System and Basic Units

OpenSCAD uses a standard right-handed 3D coordinate system:

X – left / right
Y – front / back
Z – up / down

The origin (0, 0, 0) sits at the centre of the virtual space. All dimensions are unitless, but by convention most people treat them as millimetres when the model will be 3D-printed.

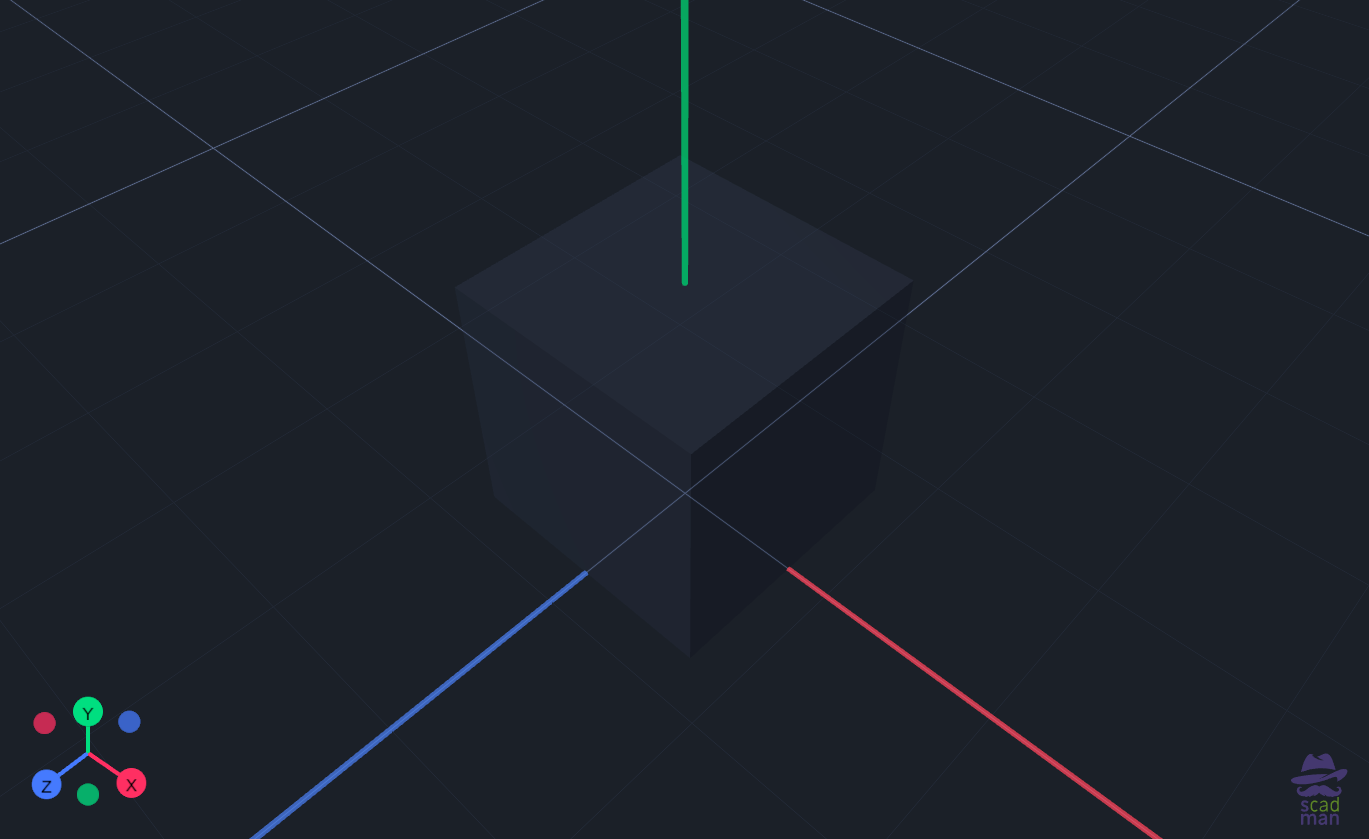

*Coordinate system axes (X red, Y green, Z blue) with a small cube at the origin*

Comments start with // and are ignored by the compiler. They are essential for making code readable.

Variables are written simply:

brick_length = 32;

Once defined, a variable can be used anywhere later in the file. Changing the value at the top updates every place it appears — this is the heart of parametric design.

Furthermore, each variable defined at the beginning of the file automatically creates a simple visual controller in the Customizer (you can find it on the right side in scadman), meaning that in most cases you don't even need to look at the code to change model parameters!

2. Example 1 – A Simple Building Brick

The most basic solid in OpenSCAD is the cube.

// Brick dimensions
brick_length = 32;   // X
brick_width  = 16;   // Y
brick_height = 9.6;  // Z

// The brick itself, centered at the origin
cube([brick_length, brick_width, brick_height], center = true);

🔗Open in sCADman

What the code does

cube([x, y, z]) creates a rectangular box.
The center = true parameter places the centre of the cube at the origin. Without it, the cube would sit with one corner at (0,0,0) and extend only into positive coordinates.
Using variables instead of hard-coded numbers makes the brick easy to resize later.

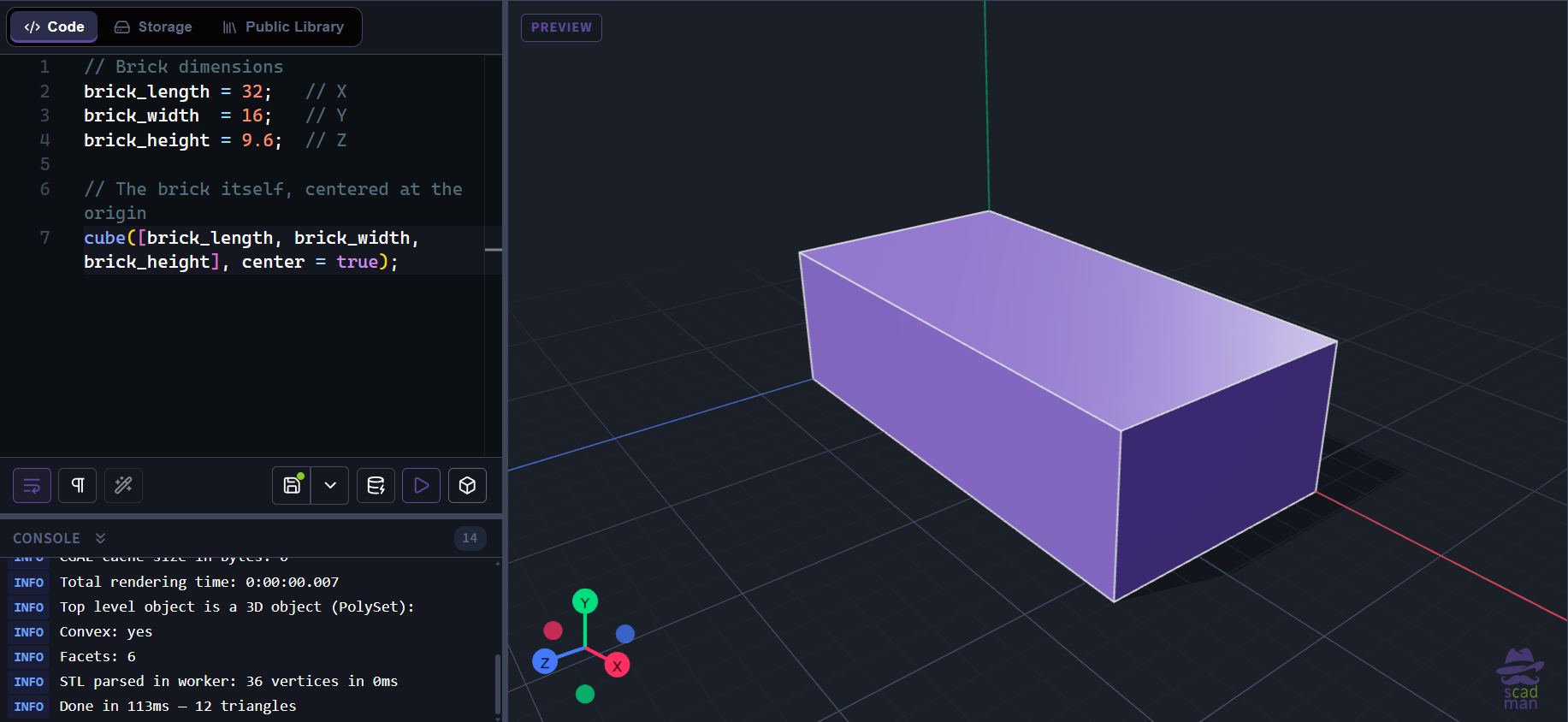

*Rendered brick, front and isometric views, with dimension arrows showing length/width/height*

This single statement already produces a printable object. From here you can add studs, holes or fillets, but the foundation is simply a well-positioned cube.

3. Example 2 – A Simple Cup (Boolean Difference)

Most useful objects are not solid blocks. To create a hollow cup we need two concepts:

The cylinder() primitive
The difference() Boolean operation

// Parameters
outer_radius = 25;
height       = 40;
wall         = 2.5;
bottom       = 3;

$fn = 64;  // smoothness of the cylinder

difference() {
    // Outer cylinder
    cylinder(h = height, r = outer_radius, center = false);

    // Inner hollow (moved up by bottom thickness)
    translate([0, 0, bottom])
        cylinder(h = height, r = outer_radius - wall, center = false);
}

🔗Open in sCADman

Breaking it down

cylinder(h = …, r = …)
Creates a cylinder. h is height, r is radius.
center = false (the default) places the bottom of the cylinder on the XY plane.
$fn = 64
Controls how many segments are used to approximate the circle. Higher values produce smoother curves but generate more triangles.
difference() { … }
Subtracts every shape that follows the first one.
The first cylinder is the outer body; the second (smaller) cylinder is subtracted from it.
translate([0, 0, bottom])
Moves the inner cylinder upward so that a solid bottom of thickness bottom remains.

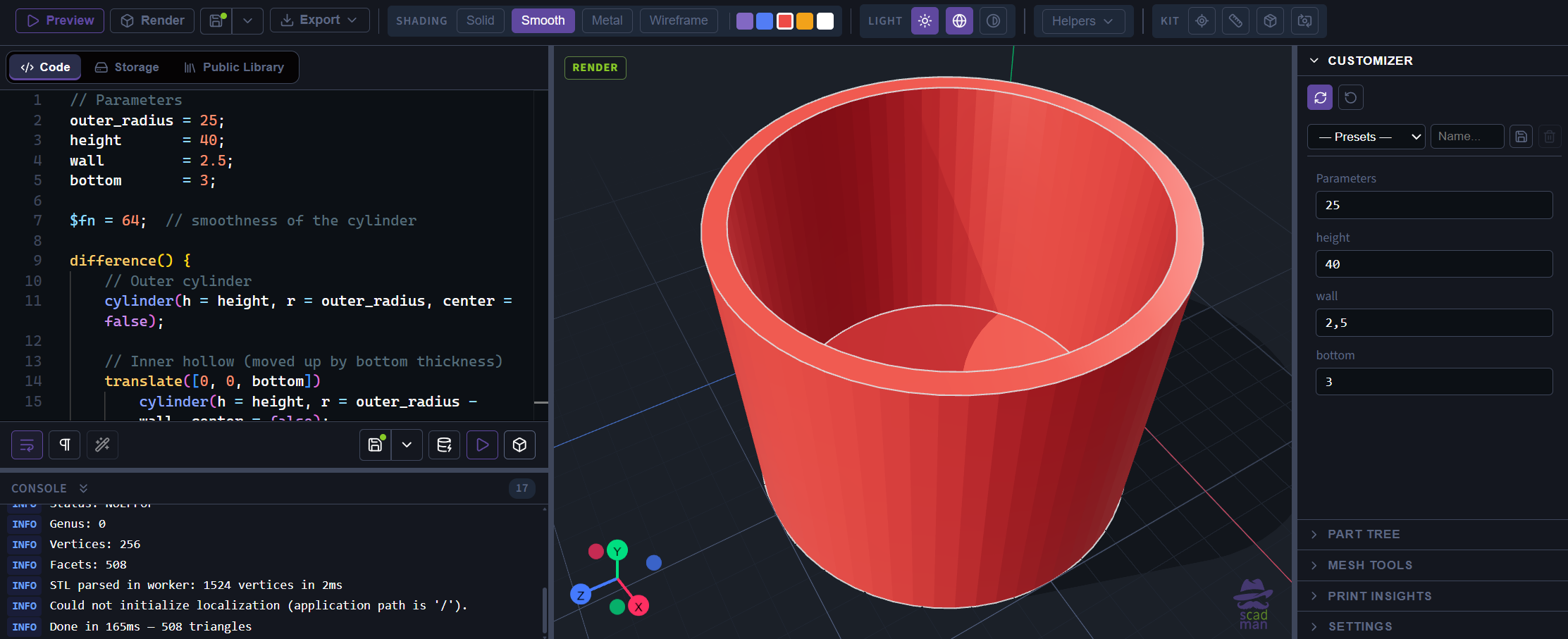

*This is our hollow cylinder.*

The wall thickness is simply the difference between the two radii (outer_radius - wall). This pattern — outer shape minus an offset inner shape — is one of the most common techniques in OpenSCAD.

4. Example 3 – A Rounded Tray (hull and modules)

A rectangular box with sharp corners is easy; a tray with softly rounded corners needs a different approach. We build the rounded outline by connecting four cylinders with hull(), then hollow it out.

// Parameters
length     = 80;
width      = 50;
height     = 12;
wall       = 2.5;
corner_r   = 8;      // corner rounding radius
bottom     = 2.5;

$fn = 48;

module rounded_rect(l, w, r) {
    // Create a rounded rectangle using hull of 4 cylinders
    hull() {
        translate([ l/2 - r,  w/2 - r, 0]) cylinder(h = height, r = r);
        translate([ l/2 - r, -w/2 + r, 0]) cylinder(h = height, r = r);
        translate([-l/2 + r,  w/2 - r, 0]) cylinder(h = height, r = r);
        translate([-l/2 + r, -w/2 + r, 0]) cylinder(h = height, r = r);
    }
}

difference() {
    // Outer rounded shape
    rounded_rect(length, width, corner_r);

    // Inner hollow (smaller and raised)
    translate([0, 0, bottom])
        rounded_rect(length - 2*wall, width - 2*wall, corner_r - wall);
}

🔗Open in sCADman

New ideas introduced

hull()
Takes all the shapes inside it and creates the smallest convex shape that encloses them. Four cylinders placed at the corners become a smoothly rounded rectangle.

module
A reusable block of code. Once you define rounded_rect, you can call it multiple times with different sizes. This keeps the main logic clean and makes later changes easier.

Offsetting for the inner cavity
We call the same module again, but with reduced length, width and corner radius, then lift it by bottom. The difference() operation removes the inner volume, leaving walls of consistent thickness.

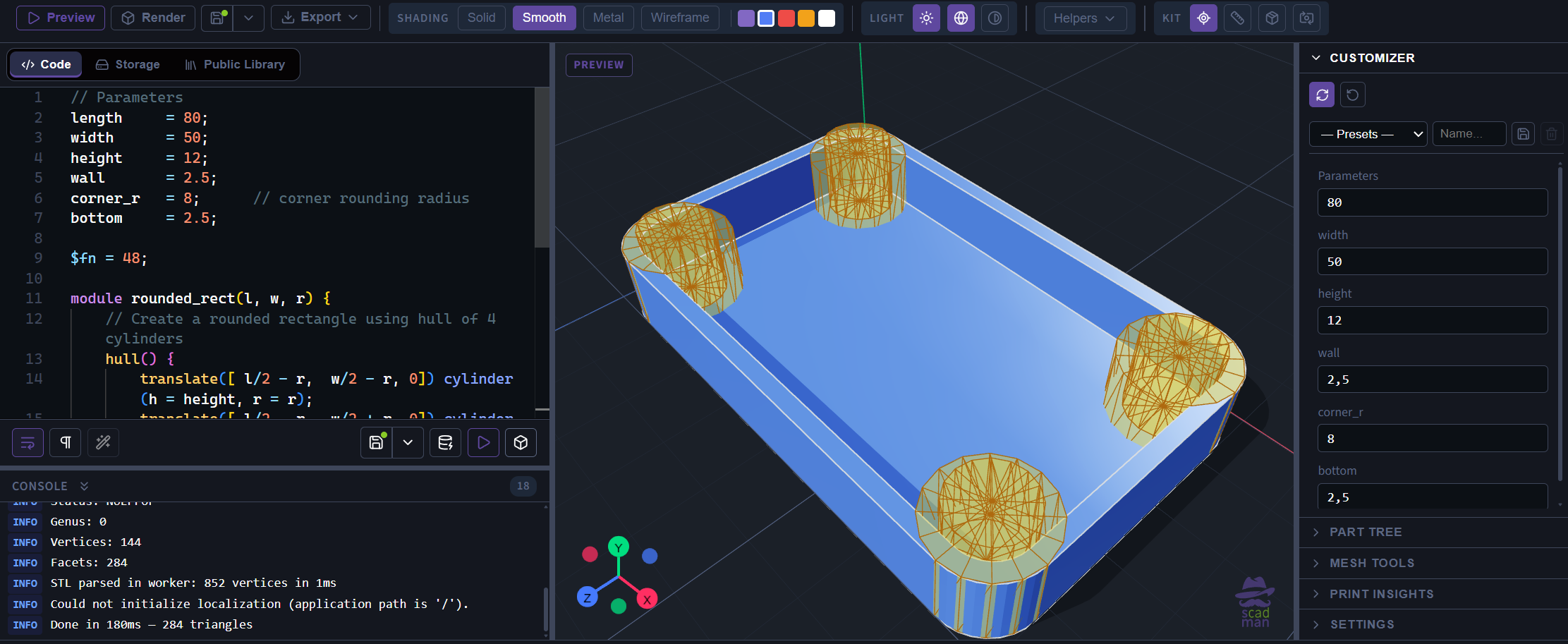

*Four cylinders at the corners (orange) → hull result (solid rounded rectangle) → final hollow tray with wall thickness visible (blue)*

Putting the Three Ideas Together

Concept	Brick	Cup	Tray
Primitive	`cube`	`cylinder`	`cylinder` + `hull`
Positioning	`center=true`	`translate`	`translate` inside module
Combining shapes	—	`difference`	`difference` + `hull`
Reuse	variables	variables	`module`
Smoothness control	—	`$fn`	`$fn`

These three short scripts already cover the majority of everyday OpenSCAD modelling:

Creating solid primitives
Moving them with translate
Cutting material away with difference
Building more complex outlines with hull
Organising code with variables and modules

Everything else in OpenSCAD — loops, conditionals, more advanced transformations, libraries — builds on top of these foundations.

Try It Yourself

Open scadman.xyz.
Paste any of the three examples above or follow link below example.
Press P (Preview) to see the model.
Change a variable (for example wall or corner_r) and preview again.

Because the entire toolchain runs in the browser, you can experiment instantly and share a finished design simply by copying the URL.

The next steps after these basics are usually rotation, more Boolean operations, 2D shapes with extrusion, and simple loops. Each of them follows the same pattern you have already seen: describe geometry clearly, keep parameters at the top, and let the compiler do the rest.
